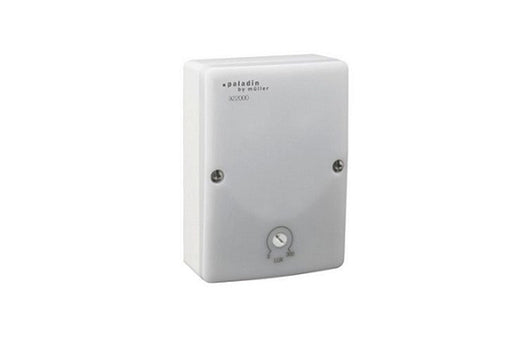

Analog Twilight Switch 230V Wall Mounting - 922000 Hugo Muller

AED. 305.00
Product Catalog Product Manual Analogue twilight switch Wall Mounting Adjustable 3 to 300 Lux Time delay approx. 1 min before switching takes place LED-adjustment aid, without delay Fitted for high...
Availability: Out Of Stock
Sku: 922000
Categories: Digital & Analog Timers, Digital and Analog Twilight Switches
Product Type: Twilight Timer Switch
Vendor: Hugo Muller
Product Catalog
Product Manual

  • Analogue twilight switch
  • Wall Mounting
  • Adjustable 3 to 300 Lux
  • Time delay approx. 1 min before switching takes place
  • LED-adjustment aid, without delay
  • Fitted for high lamp loads
  • Double line entrance from below or through the housings rear pane.
  • Country of Origin: Germany
  • Make/Brand: Hugo Muller

Technical Data

Supply voltages 230 V, 50–60 Hz
Power consumption 1 VA
Channel Normally Open, 16 A 250 V AC
Contact material AgSnO2 + W pre-make contac
Switching capacity
resistive load::
inductive load:
16 A / 250 V~ at cosϕ=1
16 A at cosϕ=0,6
Min. switching power 1.000 mW (10 V / 10 mA)
Max. starting current 165 A / 20 mSek. (filament lamp)
800 A / 200 μSek. (fluorescent lamp)
Filament Lamp, Halogen Lamp 3.000 W
Fluorescent Lamp uncompensated 3.000 VA
Compact Fluorescent Lamp
convent. lamp ballast		 1,000 VA
Compact Fluorescent Lamp electron. lamp ballast 4 x electronic lamp ballast, power independent
LED (230 V~) / CFL 400 W
Lux range 3–300 Lux
Switching delay approx. 1 min..
Permitted ambient temperature –50°…+50°C
Type of protection IP 54
Dimensions 95 x 68 x 38 mm
Mounting Wall
Hysteresis approx. 50%
