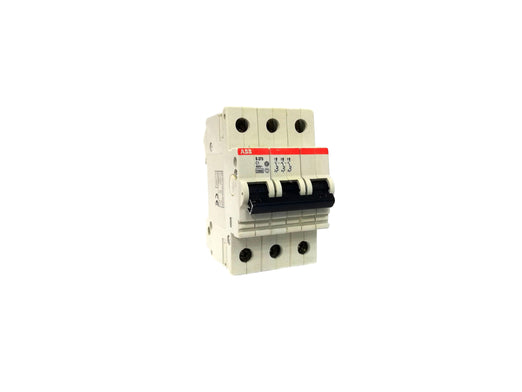

1 Amp 3 Pole MCB Miniature Circuit Breaker 10kA C Curve S273 ABB

The ABB S273 is a 1 Amp three pole MCB Miniature Circuit Breaker built to protect low current control and instrumentation circuits from overload and short circuit faults. With a 10kA breaking capacity, it holds up in panels fed from strong supply sources where a lower rated device would not be suitable.

Its C curve tripping characteristic allows normal inrush from small transformers, contactor coils and control gear to pass without nuisance tripping, while still clearing genuine faults quickly. The three pole construction switches all three phases together, so a fault on any one line isolates the full circuit rather than leaving part of it live.

The unit clips onto standard 35mm DIN rail and fits neatly into distribution boards, control panels and machine enclosures. Manufactured in Italy by ABB, it carries the build quality and long service life panel builders expect from the S200 family.

Key Features

• 1 Amp rating suited to control, metering and instrumentation circuits

• 10kA breaking capacity for panels on high fault level supplies

• C curve tripping avoids nuisance trips on inductive loads

• Three pole design isolates all phases on a fault

• Snap fit 35mm DIN rail mounting for fast installation

• Genuine ABB product manufactured in Italy

• Compact 0.28kg body saves rail space in crowded panels

Technical Specifications

Common Applications

Control circuits inside motor control centres, PLC and instrumentation supplies, small three phase transformer protection, submeter and metering circuits, machine builder panels, and low current feeders in commercial distribution boards.

Why Buy From Qahraba

Qahraba supplies electrical contractors, panel builders and procurement engineers across the UAE and worldwide. Every MCB Miniature Circuit Breaker we stock is sourced from the original manufacturer. Local UAE orders ship within 1 to 2 working days, free above AED 250, with worldwide shipping available at checkout. Call or WhatsApp +971 52 913 9543 for bulk pricing or technical help.

FAQ

What is an MCB Miniature Circuit Breaker used for?

An MCB Miniature Circuit Breaker automatically disconnects a circuit when it detects an overload or short circuit, protecting cables and connected equipment. Unlike a fuse it can be reset and reused after the fault is cleared.

Why choose a C curve MCB instead of a B curve?

 A C curve trips between 5 and 10 times rated current, so it tolerates the brief inrush of transformers, motors and contactor coils. A B curve trips between 3 and 5 times and is better suited to resistive and lighting loads.

What does 10kA breaking capacity mean?

 It is the maximum prospective short circuit current the breaker can safely interrupt. A 10kA device is specified where the supply can deliver high fault current, such as panels close to a transformer.

Can a 1 Amp MCB be used for a motor?

 Not for the motor supply itself. A 1 Amp rating is intended for control, metering and instrumentation circuits. Motor feeders need an MCB or MPCB sized to the full load current.

Does this MCB fit standard DIN rail?

Yes. The ABB S273 clips onto standard 35mm DIN rail in any distribution board or control panel.
