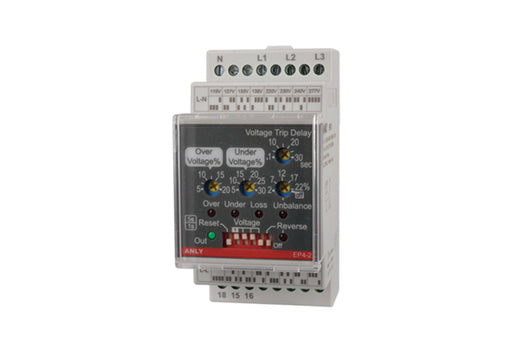

Multi Function Under Voltage/Over Voltage Relay 250VAC 5A - EP4-21 Anly Taiwan

AED. 314.00
Download Product Catalog Download Product Manual Operating Voltage: L-L AC 200 – 480V ; L-N AC 115 – 277V Switching Mode Power Supply architecture 3-phase 3-wire and 3-phase 4-wire selectable via DIP...
Availability: 10 In Stock
Sku: EP4-21
Categories: Popular Products, Protective Relays, Relays
Product Type: Voltage Relay
Vendor: Anly
Download Product Catalog
Download Product Manual

  • Operating Voltage: L-L AC 200 – 480V ; L-N AC 115 – 277V
  • Switching Mode Power Supply architecture
  • 3-phase 3-wire and 3-phase 4-wire selectable via DIP switch
  • Over Voltage trip point from 5 to 20%
  • Under Voltage trip point from 5 to 30%
  • Voltage Trip Delay from 0.1 to 30 sec.
  • Voltages Unbalance detection with a fixed 3 sec. trip delay
  • Allowable Operating Voltage Range: 70-120% of rated operating voltage
  • Rated Frequency: 50/60Hz
  • Detecting Method: Detect 3-phase supply voltage
  • Contact Rating: 250VAC 5A (resistive load)
  • Volts: 3P3W 200-480V
  • Volts: 3P4W 115-277V
  • Power Consumption: Approx. 2.8VA (220VA) ; Approx. 3.6VA (380VA)
  • Output Contact: 1C No-Fault
  • Auto Reset time selectable between 1 and 5 sec
  • Dimension: (H)90.6mm x (W)45mm x (D)56.6mm
  • Make / Brand: ANLY
  • Country of Origin: Taiwan
  • Weight: 136g
