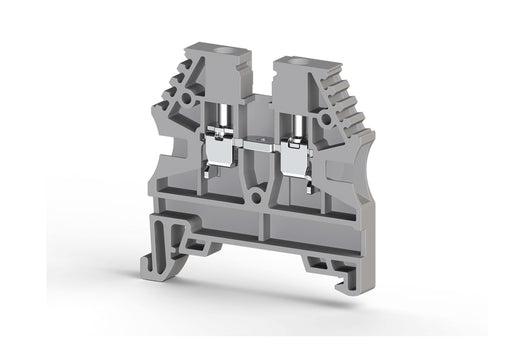

2.5mm Terminal Block Din Rail Mount AVK2.5 304120 Klemsan

AED. 1.00
General Product Information Insulating material PA   Inflammability class acc. to UL 94 V2     Weight (g) Dimensions Width 5 mm   Length 44.2 mm   Height (MR 32)...
Availability: 160 In Stock
Sku: AVK2.5
Categories: Popular Products, Terminal Block & Terminal Strip, Wiring Accessories
Product Type: Terminal Blocks
Vendor: Klemsan
  • General Product Information Insulating material PA
      Inflammability class acc. to UL 94 V2

      Weight (g)
    Dimensions Width 5 mm
      Length 44.2 mm
      Height (MR 32) --- mm
      Height (MR 35x7.5) 44.5 mm
    TSE / CE Technical Data Nominal Voltage 750 V ~
      Nominal Current 24 A
      Cross Section 2.5 mm2
      Norm EN 60947-7-1
    VDE Technical Data Nominal Voltage 750 V ~
      Nominal Current 24 A
      Cross Section 2.5 mm2
      VDE Norm IEC 60947-7-1
    UL / CSA Technical Data Nominal Voltage 600 V ~
      Nominal Current 20 A
      Cross Section AWG/26-12
    ATEX Technical Data Nominal Voltage 630 V ~
      Nominal Current 21 A
      Cross Section 2.5
    Connection Data Minimum solid strand cross section 0.5 mm2
      Maximum solid Strand cross section 4 mm2
      Minimum fine Strand cross section 1.5 mm2
      Maximum fine strand cross section 2.5 mm2
      AWG Conductor Range 26-12
      Connection Type screw/vidalı
      Insulation Stripping length 10 mm
      Tightening torque 0.4 Nm
