Product Catalog Product Manual Analogue twilight switch DIN-rail mounting 17.5mm Switching Capacity 16A 923501 – Sensor for Mounting within housing Make / Brand: Hugo Muller Country of Origin: Germany  ...
Availability: 6 In Stock
Sku: 923501
Product Type: Analog Twilight Switch
Vendor: Hugo Muller
Product Catalog
Product Manual

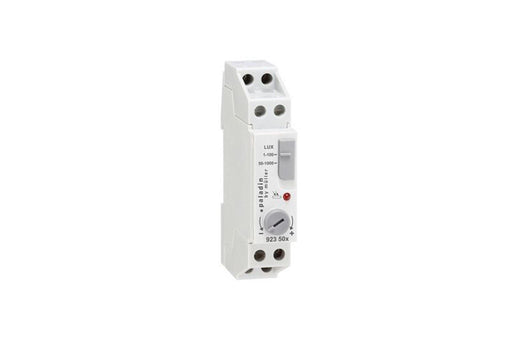

  • Analogue twilight switch
  • DIN-rail mounting 17.5mm
  • Switching Capacity 16A
  • 923501 – Sensor for Mounting within housing
  • Make / Brand: Hugo Muller
  • Country of Origin: Germany





Technical data

Supply voltages 230 V, 50 Hz
Power consumption (real power) 0,5 W
Channel Normally open
Switching capacity
resistive load:
inductive load:
16 A / 250 V~ at cosϕ=1
4 A at cosϕ=0,6
Zero-cross switching Yes / for relay-saving switching
Contact material AgSnO2
Filament Lamp Halogen Lamp 3.000 W
Fluorescent Lamp uncompensated 3.600 W
Fluorescent Lamp parallel compensated (130 µF) 1.300 W
Compact Fluorescent Lamp 18 x 7 W
12 x 11 W
10 x 15 W
10 x 20 W
10 x 23 W max.
Switching-On value 1–100 / 50–1.000 Lux
Time delay approx. 8 sec. at ON,
approx. 40 sec. at OFF
Switch-off approx. 1.3 times the value of switching ON
Mounting 35 mm DIN-rail
Permitted ambient temperature Sensor unit –35°…+50°C
Control unit –10°…+40°C
Type of protection IP 54 for sensor 923500
IP 65 for sensor 923501
IP 20 for control unit
Sensor wiring, cross section min. 0,5 mm2
