AED. 147.00
Product Catalog Large format numerals 4.4mm in height Easy to connect – screw terminals accessible from near With retaining clip With universal connections Touch Proof connections to VBG4 Low-Noise BW...
Availability: 13 In Stock
Sku: BW4018-115V-50HZ

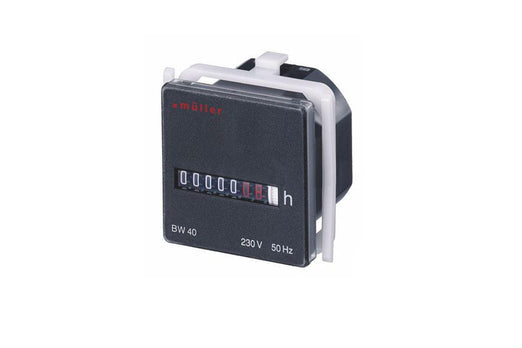

Product Type: Elapsed Time Counter
Vendor: Hugo Muller
Product Catalog

  • Large format numerals 4.4mm in height
  • Easy to connect – screw terminals accessible from near
  • With retaining clip
  • With universal connections
  • Touch Proof connections to VBG4
  • Low-Noise
  • BW – Alternating Current
  • Make / Brand: Hugo Muller
  • Country of Origin: Germany



Technical Data – BW Alternating Current

Supply voltages
(please state when ordering)
230 V, 50 Hz (Standard)
alt. 115 V, 50 Hz
alt. 24 V, 50 Hz
Special voltages on request
Optional frequency 60 Hz
Voltage tolerance ±15%
Power consumption (real power) 0,15 W
Counter capacity 99.999 h.
Accuracy of reading 0,01 h.
Numeral height 4,4 mm
Numeral colour white, decimal figures red
Operation indicator fast-running wheel
Permitted ambient temperature –15°…+55°C
Housing self-extinguishing thermoplastic
Mounting Panel
Mounting aperture Square: 45 x 45 mm
Circle: Ø 50,5 mm
Type of connection Universal: Screw, soldered and
6.3 x 0.8 mm AMP plug-type connections
Type of protection Front IP 50 to DIN EN 60529
(with ring seal 101.003.004: IP 54)
Class of protection II when fitted in accordance with regulations
