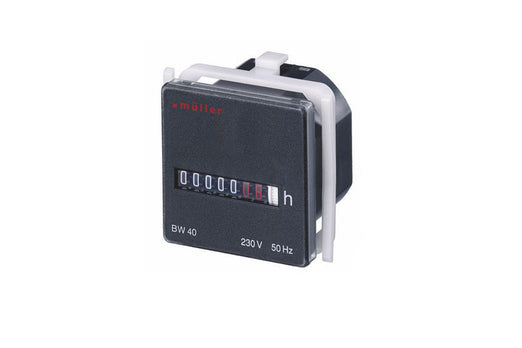

- Large format numerals 4.4mm in height
- Easy to connect – screw terminals accessible from near
- With retaining clip
- With universal connections
- Touch Proof connections to VBG4
- BW – Alternating Current
- Make / Brand: Hugo Muller
- Country of Origin: Germany
Technical Data – BW Alternating Current
(please state when ordering)
|230 V, 50 Hz (Standard)
alt. 115 V, 50 Hz
alt. 24 V, 50 Hz
|Special voltages||on request|
|Optional frequency||60 Hz|
|Power consumption (real power)||0,15 W|
|Counter capacity||99,999 h.|
|Accuracy of reading||0,01 h.|
|Numeral height||4,4 mm|
|Numeral colour||white, decimal figures red|
|Operation indicator||fast-running wheel|
|Permitted ambient temperature||–15°…+55°C|
|Mounting aperture||Square: 45 x 45 mm
Circle: Ø 50,5 mm
|Type of connection||Universal: Screw, soldered and
6.3 x 0.8 mm AMP plug-type connections
|Type of protection||Front IP 50 to DIN EN 60529
(with ring seal 101.003.004: IP 54)
|Class of protection||II when fitted in accordance with regulations|
