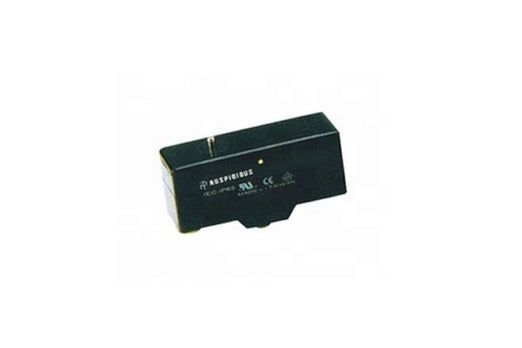

Top Plunger Push Type Micro Limit Switch 15A AM-1300 Auspicious

The Auspicious AM-1300 is a micro limit switch with a plain top plunger actuator. A cam, dog or moving part presses down on the plunger, the internal contacts change over, and the control circuit gets the signal that the part has arrived. No lever, no roller, nothing to stick out from the body.

That simplicity is the point. Where the moving part comes straight down onto the switch in a repeatable line, a plain plunger is the smallest, cheapest and most precise option available. There is no lever arm to misalign and no roller to fall out of a fork, so once it is set it stays set. The 0.01mm starting operating speed means it registers very slow, fine movement, which suits jigs, fixtures and position checks on precision equipment.

Electrically it punches above its size. 15A at 125 or 250V AC is three times what a typical 5A micro switch handles, and the quarter horsepower rating at 250V AC means it can drive a small motor directly instead of going through a contactor. IP55 protection covers dust and low pressure water, which is enough for most indoor machine and workshop conditions. UL and CE approvals cover it for export machinery.

Key Features

• Plain top plunger actuator for straight line, in axis contact

• Compact body with no protruding lever or roller

• Very fine operating speed from 0.01mm per second

• High 15A rating at both 125V and 250V AC

• Quarter HP motor switching at 250V AC without a contactor

• IP55 protection against dust and low pressure water

• UL Listed and CE Mark certified

• Genuine Auspicious product made in Taiwan

Technical Specifications

Common Applications

Door and cover closed detection, jig and fixture position confirmation, press and slide end of travel stops, vending and dispensing mechanisms, tray and drawer sensing, small motor switching without a contactor, panel interlocks, and any point where the moving part arrives straight onto the switch in a consistent line.

Choosing the Right Micro Limit Switch

The actuator has to match how the moving part arrives. A plain plunger suits straight, repeatable contact. Where a cam slides across the actuator instead of pressing straight down, the roller plunger version AM-1308 is the one to use. Same 15A body, same IP55, but the roller turns instead of scraping, so the trip point holds through thousands of cycles.

If the part approaches from the side, a lever reaches out to meet it: the lever limit switch AZ-7120 is a compact side mount unit. Where the contact point varies, the adjustable roller lever limit switch AZ-8108 lets you set the lever length, and the adjustable rod limit switch AZ-8107 gives long reach onto irregular targets. Where an overrun could snap a rigid actuator, the spring limit switch AZ-8166 flexes instead.

For heavy equipment such as lifts and cranes, step up to the big wheel limit switch AZ-5108L or the ball limit switch AZ-5109, both IP67 rated for outdoor duty.

Browse the full 15 amp micro switch range or the wider limit and micro switches category.

Why Buy From Qahraba

Qahraba supplies electrical contractors, panel builders and machine builders across the UAE and worldwide. Every micro limit switch we stock is genuine Auspicious product with full certification. Local UAE orders ship within 1 to 2 working days, free above AED 250, or collect free from our Dubai store. Call or WhatsApp +971 52 913 9543 for bulk pricing.

FAQ,s

What is a micro limit switch?

It is a small switch that detects when a moving part reaches a set position. The part presses the actuator, the contacts change over, and the signal tells the machine to stop, reverse or move to the next step.

When should I use a plain plunger instead of a roller?

Use a plain plunger when the moving part presses straight down onto the switch in the same spot every time. Use a roller when a cam slides across the actuator, since sliding wears a plain plunger head and shifts the trip point.

Can this switch run a motor directly?

Yes, up to a quarter horsepower at 250V AC or an eighth at 125V AC. Anything larger should go through a contactor with the switch driving the coil.

Is IP55 enough for my application?

IP55 resists dust and low pressure water, which covers most indoor machine and workshop conditions. For coolant heavy, washdown or outdoor use, choose an IP65 or IP67 rated model.

How small a movement will it detect?

The operating speed range starts at 0.01mm per second, so it registers very slow and fine movement as well as faster travel up to 1m per second.

What is the difference between a micro switch and a limit switch?

In practice the terms overlap. Micro switch usually describes the small snap action switch body itself, while limit switch describes the job it does, detecting the limit of travel on a machine.
