Ball Limit Switch 10A IP67 1NO 1NC AZ-5109 Auspicious

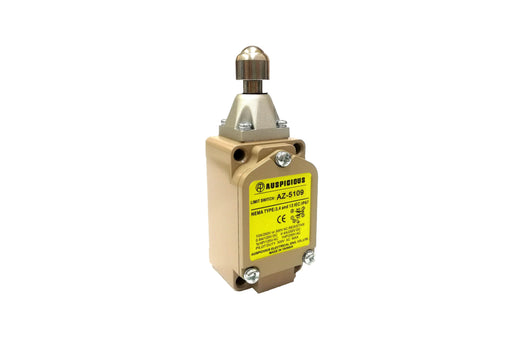

The Auspicious AZ-5109 is a ball limit switch with a top ball plunger actuator. Instead of a flat plunger head or a roller on a lever, a steel ball sits in the head of the switch. A cam or moving part presses down on it, the plunger travels, and the contacts change over.

The ball shape is what makes this model useful where the approach is not perfectly square. A flat plunger needs the cam to press straight down, and any side force scrapes the head or binds the plunger. The ball rolls in its seat, so angled contact from any direction turns into clean downward travel. That keeps the trip point repeatable and stops the actuator wearing out on machines where alignment shifts over time.

Electrically it handles 10A at 125 or 300V AC and 1HP at 250V AC, enough to switch a small motor directly rather than driving a contactor coil. IP67 sealing is the key spec for outdoor and washdown work: the body is fully dust tight and survives temporary immersion. Dust proof and oil tight construction with stainless steel internals backs that up, and the 40mm wide body gives a solid mounting footprint on heavy frames.

Key Features

• Top ball plunger accepts angled contact without binding

• Rolling ball reduces wear compared with a flat plunger head

• 1NO and 1NC contacts for signal and interlock together

• 10A at 125 or 300V AC and 1HP switching at 250V AC

• IP67 sealing rated for dust and temporary immersion

• Dust proof, oil tight construction with stainless steel internals

• 40mm width gives a stable mounting footprint

• CE Mark certified and made in Taiwan

Technical Specifications

Common Applications

Overhead cam sequencing on heavy machinery, press and die position detection, lift and hoist travel limits, conveyor and transfer line stops, outdoor material handling equipment, car park and industrial door mechanisms, washdown areas in food and beverage plants, and any point where a cam presses down at a slight angle onto the switch.

Choosing the Right Limit Switch Actuator

The actuator is the decision, and it follows how the moving part meets the switch. A ball plunger suits a downward press that may come in at an angle. Where the part sweeps past from the side, a wheel catches it better: the big wheel limit switch AZ-5108L shares the same 10A rating and IP67 body but uses an adjustable roller lever.

For long reach onto a target set away from the switch, the adjustable rod limit switch AZ-5107 is the heavy duty option in this series, and the 5A adjustable rod limit switch AZ-8107 covers lighter indoor duty.

Where the job is smaller and cheaper, the lever limit switch AZ-7120 mounts flat along a frame, the roller plunger limit switch AM-1308 carries 15A from a top roller plunger, and the spring limit switch AZ-8166 flexes rather than breaking when a load overruns.

Browse the full 10A limit switch and pull cord switch range or the wider limit and micro switches category.
