AED. 390.00
Product Catalog Product Manual 1 channel Astronomical Timer Economical night program 4 memory locations Integrated NFC Programmable via App (Android) 10 years battery-reserve Exchangeable battery (CR 2032) Minimum interval 1 min....
Availability: 24 In Stock
Sku: 170413

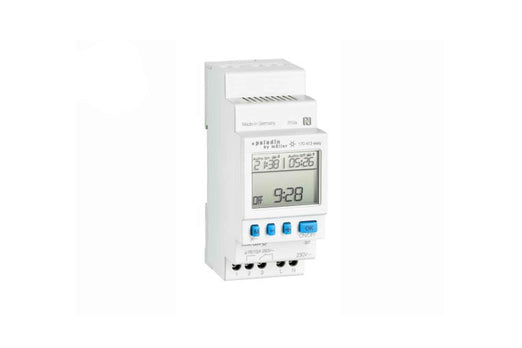

Product Type: Digital Astronomical Timer
Vendor: Hugo Muller
Product Catalog
Product Manual

  • 1 channel
  • Astronomical Timer
  • Economical night program
  • 4 memory locations
  • Integrated NFC
  • Programmable via App (Android)
  • 10 years battery-reserve
  • Exchangeable battery (CR 2032)
  • Minimum interval 1 min.
  • Switching capacity 16 A
  • Manual permanent mode
  • Manuelle override
  • Fully automatic daylight saving time
  • Easy handling
  • Illuminated display
  • Security by PIN-Code
  • NFC programming (ISO 15693 Standard)
  • Make / Brand: Hugo Muller
  • Country of Origin: Germany



Technical data

Supply voltages 230 V, 50-60 Hz
other voltages on request
Power consumption (real power) 0,2–1,0 W (depending on the switching status)
Channel (potential-free) Change-over, contact gap < 3mm (μ)
Contact material AgSnO2
Switching capacity
per channel
resistive load:
inductive load:


16 A / 250 V~ at cosφ=1
10 A / 250 V~ at cosφ=0,6
Min. switching power 1.000 mW (10 V / 10 mA)
Max. starting current 50 A
Filament Lamp, Halogen Lamp 2.000 W
Fluorescent Lamp uncompensated 1.000 W
Fluorescent Lamp series compensated 1.000 W
Fluorescent Lamp parallel compensated 550 W
CFL 200 W
LED (230 V~)
(LED lamps > 5 W)
200 W
Switching functions
Astro:
Night:

ON/OFF
ON/OFF
Memory locations 4
Minimum nterval 1 min.
Time base Quartz
Quartz accuracy (at 20 °C) ≤±0,5 sec./day (Quartz accuracy optimized for typical nambient conditions)
Power back-up (at 20 °C) approx. 10 years (exchangeable battery CR 2032)
Program security unlimited
Display illuminated LCD-display
Permitted ambient temperature –30…+55 °C
Housing self-extinguishing thermoplastic
Dimensions 45 x 35 x 58 mm
Mounting 35 mm DIN-rail
Type of connection Screw terminals (pull-up type)
T ype of protection IP 20 to DIN EN 60529
Class of protection II when installed according to regulations
Mode of oeration
(DIN EN 60730-1)
(DIN EN 60730-2-7)
1 BSTU
Degree of contamination
(DIN EN 60730-1)
2
Rated surge voltage
(DIN EN 60730-1)
4 kV
Minimum requirement Android: from version 4.4
iOS: from version 13.2.3, Model: from IPhone 7
Accessories
(free download)
Programmable with smartphone via NFC:
App - Save`n Carry
