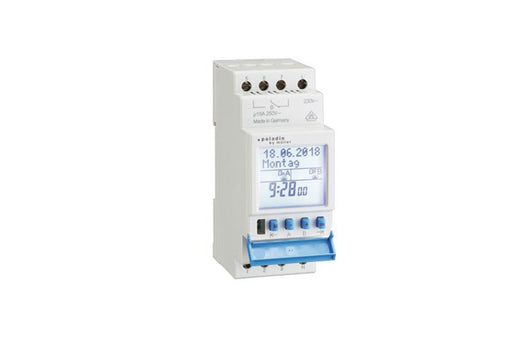

Digital Astronomical Timer w/ Daily and Weekly Program 230V Din Rail Mount - 172413 Hugo Muller Germany

Regular price
AED. 315.00
Sale price
AED. 315.00
Inc. VAT Shipping calculated at checkout.
Quantity must be 1 or more

Product Catalog
Product Manual

  • 1 Channel
  • Daily & Weekly Program
  • Astronomical Program
  • Extra Switching times
  • 60 Memory Locations
  • 10 year battery-reserve
  • Minimum Interval 1 min
  • Switching Capacity 16 A
  • Manual Permanent Mode
  • Manual override
  • Elapsed time and pulse counter
  • Security by PIN-Code
  • Illuminated Display
  • Data-key function
  • Make / Brand: Hugo Muller
  • Country of Origin: Germany



  • Technical Data
Supply voltages 230 V, 50-60 Hz
other voltages on request
Power consumption (real power) 0,8-1,8 W (depending on the switching status)
Channel (potential-free) Change-over, contact gap < 3 mm (µ)
Contact material AgSnO2
Switching capacity per channel
resistive load:
inductive load:
16 A / 250 V~ at cosφ=1
10 A at cosφ=0,6
Min. switching power 1.000 mW (10 V / 10 mA)
Max. starting current 50 A
Filament Lamp, Halogen Lamp 2.000 W
Fluorescent Lamp with electron. lamp ballast 1000 W
Fluorescent Lamp with convent. lamp ballast 750 W
LED (230 V~) / CFL 400 W
Switching functions
Astro:
Night:
Extra:
ON/OFF
ON/OFF
ON/OFF
Offset Astro switching time +/-90min.
Memory locations 60
Minimum interval 1 Min.
Time base Quartz
Quartz accuracy
(at 20°C)
≤±0,5 Sec./day (Quartz accuracy optimized for typical ambient conditions)
Power back-up (at 20°C) approx. 10 years
(depends on the Lithium-battery life)
Program security unlimited (E2-Prom)
Display high resolution LCD
(visible area 7,5 cm2)
Permitted ambient temperature –30°…+55°C
Housing self-extinguishing thermoplastic
Dimensions 45 x 35 x 58 mm
Mounting 35 mm DIN-rail
Type of connection Screw terminals (pull-up type)
Type of protection IP 20 to DIN EN 60529
Class of protection II when installed according to regulations
Mode of operation
(DIN EN 60730-1)
(DIN EN 60730-2-7)
1 BSTU
Degree of contamination
(DIN EN 60730-1)
2
Rated surge voltage
(DIN EN 60730-1)
4 kV
Accessories
(not included in delivery)
Data-key DK pro
Programming package PP 50 pro
Programming package PP 60 pro
Certification mark VDE
