AED. 147.00
Product Catalog Product Manual Daily Program Slim Format at 35 mm Easy programming with captive setting keys Easy to read switching program Manual override switch ” Permanent OFF / Automatic...
Availability: Out Of Stock
Sku: 154220

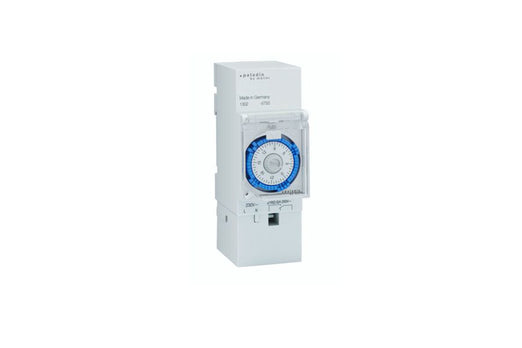

Product Type: Analog Daily Timer
Vendor: Hugo Muller
Product Catalog
Product Manual

  • Daily Program
  • Slim Format at 35 mm
  • Easy programming with captive setting keys
  • Easy to read switching program
  • Manual override switch ” Permanent OFF / Automatic / Permanent ON”
  • Simple to Install
  • Make / Brand: Hugo Muller
  • Country of Origin: Germany



  • Technical Data
Supply voltage 230 V, 50-60 Hz
other voltages on request
Power consumption (real power) 0,4 W
Switch (potential-free) Change-over, contact gap < 3mm (µ)
Manual override switch Permanent ON / Permanent OFF / AUTO
Contact material AgSnO2
Switching capacity
resistive load:
inductive load:
16 A / 250 V~ at cosφ=1
2,5 A / 250 V~ at cosφ=0,6
Min. switching power 1.000 mW (10 V / 10 mA)
Filament Lamp, Halogen Lamp 2.000 W
Fluorescent Lamp uncopensated 1.000 W
Fluoresent Lamp series compensated 750 W
LED (230 V~) / CFL 200 W
Minimum switching interval 30 Min.
Time base Quartz
Accuracy (at 23°C) ≤±1 Sec./day
Power back-up (at 20°C) approx. 100 h.
Permitted ambient temperature –5°…+50°C
Housing self-extinguishing thermoplastic
Dimensions 45 x 35 x 58 mm
Mounting 35 mm DIN-Schiene
Type of connection Screw terminals
Type of protection IP 20 to DIN EN 60529
Class of protection II when installed according to regulations
Mode of operation
(DIN EN 60730-1)
(DIN EN 60730-2-7)
1 BSTU
Degree of contamination
(DIN EN 60730-1)
2
Rated surge voltage
(DIN EN 60730-1)
4 kV
