Roller Plunger Push Limit Switch 10A IP67 AZ-5102

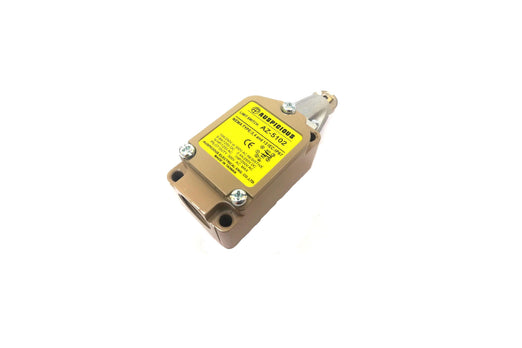

The Auspicious AZ-5102 is a roller plunger push type limit switch. The roller sits on top of a vertical plunger, so a cam or moving part presses straight down onto it and the snap action mechanism flips the contacts at a fixed point.

Roller plunger push is the right actuator when the part comes down in line with the switch body and travel is short and repeatable. The roller turns instead of scraping, so the trip point stays consistent through long cycle counts where a plain plunger head would wear.

Rated 10A at 125 or 300V AC with 1HP switching at 250V AC, it can drive a small motor directly without a contactor. The IP67 body is dust tight and withstands temporary immersion, with oil tight construction and stainless steel internals for coolant and washdown areas.

Key Features

• Roller plunger push actuator for straight line contact from above

• Snap action gives a fast, defined switching point

• 1NO and 1NC contacts for signal and interlock together

• 10A at 125 or 300V AC and 1HP switching at 250V AC

• IP67 sealing, dust proof, oil tight and water resistant

• Stainless steel essentials for corrosion resistance

• CE marked and made in Taiwan by Auspicious

Technical Specifications

Download Product Catalog

Common Applications

End of travel stops on presses and slides, cam sequencing on machine tools, door and guard position detection, pallet and jig position confirmation, and outdoor or washdown equipment where IP67 sealing is required.

Related Products

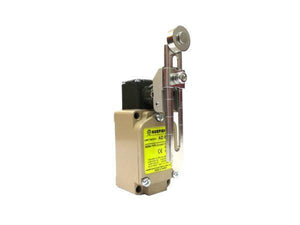

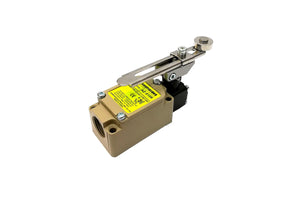

If the moving part arrives from the side rather than from above, the adjustable roller lever limit switch AZ-5108 shares the same 10A IP67 body with a 90 degree lever. For heavy equipment with less precise alignment, the big wheel limit switch AZ-5108L has an oversized roller, and the ball limit switch AZ-5109 uses a ball plunger for the same top push duty.

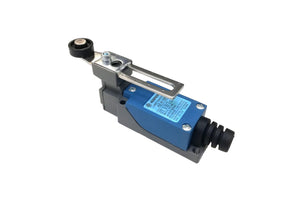

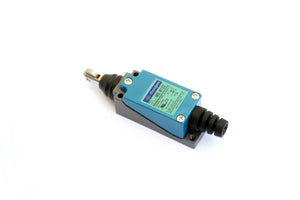

For lighter 5A work, the adjustable roller lever limit switch AZ-8108, the adjustable rod limit switch AZ-8107 and the cross roller plunger limit switch ME-8122 cost considerably less.

See the full 10A limit switch and pull cord switch range, or browse all limit and micro switches for lever, rod, spring and foot switch options.

Why Buy From Qahraba

Qahraba supplies electrical contractors, panel builders and machine builders across the UAE and worldwide. Local UAE orders ship within 1 to 2 working days, free above AED 250, or collect free from our Dubai store. Call or WhatsApp +971 52 913 9543 for bulk pricing.

FAQ,s

What is a roller plunger push limit switch?

It is a limit switch where a roller mounted on a vertical plunger is pushed down by a moving part. The plunger movement operates the contacts, signalling that the part has reached position.

What does snap action mean?

The contacts change over suddenly at a set point rather than drifting across slowly. That gives a clean signal and reduces arcing at the contacts.

When should I use a plunger instead of a lever?

Use a plunger when the part presses straight down onto the switch over a short, repeatable travel. Use a lever when the part approaches from the side or the contact point varies.

Can it switch a motor directly?

Yes, up to 1HP at 250V AC. Anything larger should run through a contactor with this switch driving the coil.

Is IP67 suitable for outdoor use?

Yes. IP67 is dust tight and withstands temporary immersion, so it handles rain, washdown and coolant exposure.
