Push Button Limit Switch Heavy Duty NO NC 10A IP67 AZ-5101 Auspicious

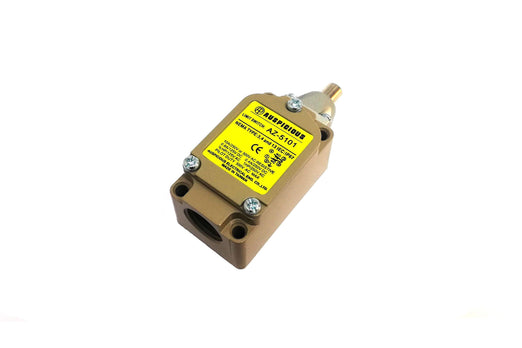

The Auspicious AZ-5101 is a heavy duty push button limit switch with a top plunger actuator and a fully sealed IP67 metal body. The moving part presses straight down onto the plunger, the contacts change over, and the controller gets its position signal. Simple action, but the sealing is what decides where a switch like this can actually be used.

IP67 means two things. The first digit, 6, means the body is completely dust tight, so no powder, grinding dust or site debris reaches the contacts. The second digit, 7, means it withstands temporary immersion in water. Most limit switches stop at IP65, which handles spray but not standing water. On a washdown floor, an outdoor gantry or anywhere a hose gets pointed at the machine, that difference is the one that matters.

Backing the IP67 rating is dust proof and oil tight construction with stainless steel internal parts, so coolant and corrosion are not a problem either. Electrically it carries 10A at 125 or 300V AC, with 1HP switching at 250V AC, enough to drive a small motor directly instead of going through a contactor. One normally open and one normally closed contact give a position signal and an interlock from the same device. CE marked and made in Taiwan.

Key Features

• Full IP67 sealing, dust tight and protected against temporary immersion

• Top plunger push actuator for direct in line contact

• Heavy duty metal body with stainless steel internal parts

• Dust proof, oil tight and water resistant construction

• 1NO and 1NC contacts for signal and interlock together

• 10A at 125 or 300V AC and 1HP switching at 250V AC

• Operating speed range from 1mm to 2m per second

• CE marked and manufactured in Taiwan

Technical Specifications

Download Product Catalog

Common Applications

Washdown areas in food and beverage plants, outdoor gantries and material handling equipment, press and punch end of travel stops, machine tool position sensing in coolant heavy environments, car wash and industrial door systems, pump and tank room equipment, and any point where a standard IP65 switch would eventually let water through.

Choosing the Right Limit Switch

Two things decide the model: how the moving part makes contact, and how harsh the environment is. A top plunger suits a cam or carriage pressing straight down in line with the switch. If the approach comes from the side or the alignment varies, the adjustable roller lever limit switch AZ-5108 shares the same 10A rating and IP67 body with a settable lever. For heavy plant like lifts and cranes, the big wheel limit switch AZ-5108L gives a much wider contact face, and the ball limit switch AZ-5109 uses a top ball plunger for the same duty.

Where IP67 is more than the job needs, smaller IP65 units cost far less. The adjustable roller lever limit switch AZ-8108 and the adjustable rod limit switch AZ-8107 cover 5A duty, the lever limit switch AZ-7120 is a compact side mount option, and the spring limit switch AZ-8166 flexes rather than breaking on an overrun. For a higher current rating, the roller plunger limit switch AM-1308 handles 15A.

Browse the full 10A limit switch and pull cord switch range or the wider limit and micro switches category.

Why Buy From Qahraba

Qahraba supplies electrical contractors, panel builders and machine builders across the UAE and worldwide. Every limit switch we stock is genuine Auspicious product with full certification. Local UAE orders ship within 1 to 2 working days, free above AED 250, or collect free from our Dubai store. Call or WhatsApp +971 52 913 9543 for bulk pricing.

FAQ,s

What does IP67 mean on a limit switch?

The first digit means the body is completely dust tight. The second means it can withstand temporary immersion in water, usually up to one metre for thirty minutes. Together they cover dust, rain, washdown and brief flooding.

What is the difference between IP65 and IP67?

Both are dust tight. IP65 resists water jets from any direction, while IP67 goes further and survives being submerged for a short period. Choose IP67 where standing water, hose down cleaning or outdoor exposure is likely.

What is a top plunger limit switch used for?

It detects a moving part that presses straight down onto the plunger, in line with the switch body. It suits cams, slides and carriages that arrive at a repeatable position from above.

What does 1NO 1NC mean?

One normally open and one normally closed contact. When the plunger is pressed, the NO closes and the NC opens, giving both a position signal and an interlock from a single switch.

Can it switch a motor directly?

Yes, up to 1HP at 250V AC and half a horsepower at 125V AC. Larger motors should run through a contactor with the switch driving the coil.

Is it suitable for outdoor use?

Yes. The IP67 body, oil tight construction and stainless steel internals are built for outdoor and washdown conditions.
