Top Plunger Push Side Mount Limit Switch 10A IP65 MN-5110 Moujen

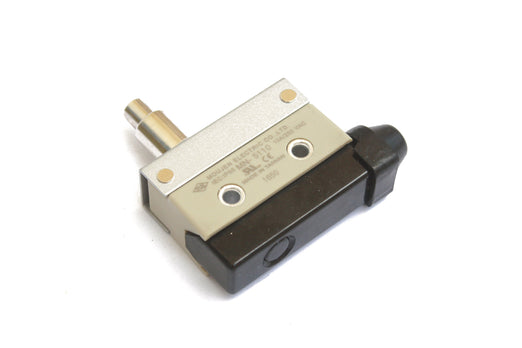

The Moujen MN-5110 is a top plunger push limit switch in a compact side mount body. The plunger sits on top of the switch and operates when a cam or moving part presses straight down onto it, so the force travels in line with the switch body rather than through a lever arm.

That straight line action is why a plunger is chosen over a lever. There is no arm to bend, no pivot to wear and no overhang to catch on anything, so the trip point stays exactly where it was set. Where travel is short, repeatable and comes in square from above, a plunger is both more accurate and more compact than a lever type.

The side mount housing fixes flat against a frame or bracket, which keeps the switch out of the path of the machine. At 10A 250V AC it handles direct AC control switching, and the 0.5A 125V DC rating covers PLC inputs. Oil tight and waterproof construction to IP65 means coolant, dust and splash do not reach the contacts, so it works in machine shops and production lines. UL and CE approvals cover it for export machinery.

Key Features

• Top plunger push actuator for straight line, in axis operation

• No lever arm to bend or pivot to wear out

• Precise trip point that stays consistent over long cycle counts

• Side mount body fixes flat against frames and brackets

• 10A 250V AC rating for direct AC control switching

• 0.5A 125V DC rating for PLC inputs

• Fine operating speed range from 0.01mm to 50cm per second

• IP65 oil tight and waterproof construction

• UL Listed and CE Mark certified, made in Taiwan

Technical Specifications

Download Product Catalog

Common Applications

Cam operated sequencing on machine tools, jig and fixture position confirmation, door and guard closed detection, press and slide end of travel stops, indexing table position sensing, small assembly and packaging machines, and any application where the moving part presses down squarely on the switch.

Choosing the Right Actuator

The actuator has to suit how the part arrives. A plain top plunger suits a square, direct push over short travel. If the cam slides across the head rather than pressing straight down, a roller is better, since a sliding cam wears a bare plunger and shifts the trip point: the cross roller plunger limit switch ME-8122 adds a cross mounted roller, and the roller plunger limit switch AM-1308 carries a higher 15A rating.

Where the part approaches from the side, a lever reaches out to meet it. The lever limit switch AZ-7120 is a compact side mount option, the adjustable roller lever limit switch AZ-8108 lets you set the lever length, and the adjustable rod limit switch AZ-8107 gives long reach onto irregular targets. For heavy equipment such as lifts and cranes, the big wheel limit switch AZ-5108L is IP67 rated.

Browse the full side mount limit switch range or the wider limit and micro switches category.
