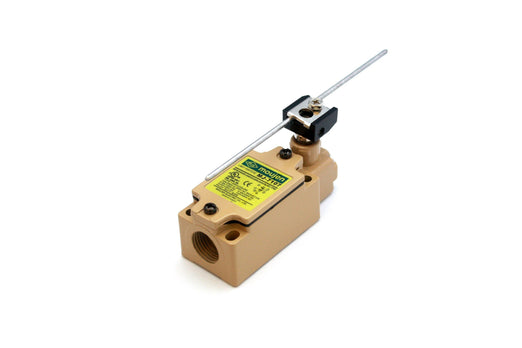

Limit Switch Adjustable Rod 1NO 1NC 10 Amp IP65 MJ-7107 Moujen

The Moujen MJ-7107 is an adjustable rod limit switch from the MJ series. The rod actuator can be bent or trimmed to suit the gap between the switch and the moving part, so one switch covers a range of mounting positions that would otherwise need different lever types.

At 10A on 125 or 300V AC it carries real load, with a 1HP rating at 250V AC that lets it switch a small motor directly instead of driving a contactor coil. The 90 degree actuator travel resets after each operation and works at speeds from 1mm up to 2m per second.

IP65 sealing with dust proof, oil tight construction and stainless steel internals suits machine shops, conveyors and wash down areas. UL and CE approvals cover it for export equipment.

Key Features

• Rod actuator bends or trims to suit the installation

• 90 degree actuator travel with automatic reset

• 1NO and 1NC contacts in one device

• 10A at 125 or 300V AC resistive

• 1HP switching at 250V AC and 1/2HP at 125V AC

• IP65 with dust proof and oil tight construction

• Stainless steel internal parts

• UL Listed and CE Mark certified

Technical Specifications

Common Applications

Position detection on conveyors and material handling lines, end of travel stops on slides and carriages, gate and door sensing, packaging and assembly machinery, and installations where the target sits away from the switch body or at an awkward angle.

Related Products and Categories

Same rod actuator in a smaller 5A body: Adjustable Rod Limit Switch AZ-8107.

Same 10A rating with a roller lever instead of a rod: Adjustable Roller Lever Limit Switch AZ-5108.

Full range: 10A Limit Switch and Pull Cord Switch and the main Limit and Micro Switches category.

Why Buy From Qahraba

Qahraba supplies electrical contractors, panel builders and machine builders across the UAE and worldwide. Local UAE orders ship within 1 to 2 working days, free above AED 250, or collect free from our Dubai store. Call or WhatsApp +971 52 913 9543 for bulk pricing.

FAQ,s

What is an adjustable rod limit switch?

A limit switch with a thin rod as the actuator instead of a lever or plunger. The rod can be bent or cut to length, so you can reach a target that sits off to one side or at an awkward height.

What does 1NO 1NC mean?

One normally open and one normally closed contact. When the rod moves, the NO closes and the NC opens, giving both a position signal and an interlock from one switch.

Can it switch a motor directly?

Yes, up to 1HP at 250V AC and half a horsepower at 125V AC. Anything larger should go through a contactor.

What is the difference between MJ-7107 and AZ-8107?

Both use a rod actuator. The MJ-7107 is the heavier 10A unit with a 1HP motor rating. The AZ-8107 is a 5A mini switch for lighter duty in tighter spaces.

Is IP65 suitable for wash down?

Yes. IP65 is dust tight and resists low pressure water jets, so it suits machine shops, coolant areas and wash down environments.
