Spring Limit Switch Flexible Rod 1NO 1NC 10A IP67 AZ-5106 Auspicious

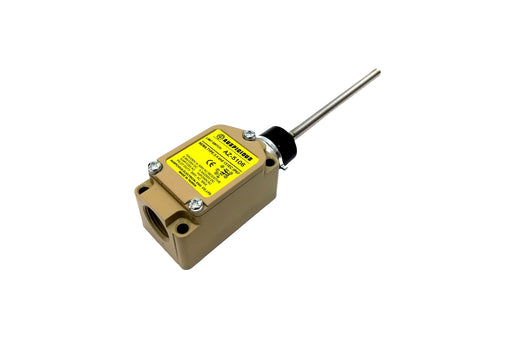

The Auspicious AZ-5106 is a flexible spring limit switch, also known as a wobble rod or wobble stick switch. Instead of a rigid lever or plunger, it uses a flexible rod on a spring base. Anything that touches the rod from any direction bends it, and that movement operates the contacts inside.

Direction independence is the reason this type gets specified. A lever only works when the moving part arrives on the expected line. A spring rod does not care: a load swinging on a crane, a pallet drifting off centre on a conveyor, or an operator walking into a trip line will all deflect it. It also survives overrun, because the rod simply bends further and springs back where a rigid actuator would snap off.

This is the heavy duty version of that design. The metal body is sealed to IP67, meaning fully dust tight and able to withstand temporary immersion, so it works outdoors, in washdown areas and in marine and port environments. Electrically it handles 10A at 125 or 300V AC, with 1HP switching at 250V AC, enough to control a small motor directly instead of going through a contactor. One normally open and one normally closed contact give both a position signal and an interlock from a single unit. UL and CE approvals cover it for export equipment.

Key Features

• Flexible spring rod responds to contact from any direction

• Bends and recovers instead of breaking on overrun

• Heavy duty metal body rated IP67 for dust and temporary immersion

• 1NO and 1NC contacts for signal and interlock together

• 10A at 125 or 300V AC and 1HP switching at 250V AC

• Dust proof, oil tight construction with stainless steel internals

• Suited to industrial, outdoor and marine installations

• UL Listed and CE Mark certified, made in Taiwan

Technical Specifications

Common Applications

Crane and hoist anti collision detection, swinging load sensing on overhead conveyors, trolley and carriage end of travel on gantries, pallet and irregular object detection in material handling, trip lines on walkways beside moving plant, port and marine equipment exposed to salt and water, outdoor conveyors and tipping systems, and any point where the moving part does not arrive on a fixed line.

Choosing the Right Limit Switch Actuator

The actuator decides the switch, and it comes down to how the moving part arrives and how rough the environment is. A flexible spring rod suits unpredictable contact and heavy outdoor duty. For the same spring action in a smaller, lighter unit, the mini spring limit switch AZ-8166 is rated 5A at IP65 and costs considerably less.

Where travel is straight and repeatable, a rigid actuator is more precise. The adjustable rod limit switch AZ-8107 uses a stiff rod you can bend or cut to length, the adjustable roller lever limit switch AZ-5108 is the 10A roller equivalent, and the AZ-8108 mini roller lever switch covers 5A duty in tight spaces.

For heavy equipment where the target can drift, the big wheel limit switch AZ-5108L gives an oversized contact face, and the ball limit switch AZ-5109 handles a straight push from above at the same IP67 rating. Where the push comes in at an angle, the cross roller plunger limit switch ME-8122 accepts approach from more than one side.

Browse the full 10A limit switch and pull cord switch range or the wider limit and micro switches category.

Why Buy From Qahraba

Qahraba supplies electrical contractors, panel builders and machine builders across the UAE and worldwide. Every limit switch we stock is genuine Auspicious product with full certification. Local UAE orders ship within 1 to 2 working days, free above AED 250, or collect free from our Dubai store. Call or WhatsApp +971 52 913 9543 for bulk pricing.

FAQ,s

What is a flexible spring limit switch?

It is a limit switch with a bendable rod on a spring base instead of a rigid lever. Contact from any direction bends the rod, which operates the contacts. It is also called a wobble rod or wobble stick switch.

Why choose a spring rod over a lever?

Because it works no matter which way the moving part approaches, and it survives being overrun. A lever can bend or break if a load goes past it, while a spring rod flexes and returns to shape.

What is the difference between the AZ-5106 and the AZ-8166?

Both use a spring actuator. The AZ-5106 is the heavy duty version with a metal body, 10A rating and IP67 sealing for outdoor and marine use. The AZ-8166 is a smaller 5A IP65 unit for lighter indoor duty.

What does IP67 mean on this switch?

The body is fully dust tight and withstands temporary immersion in water, so it suits outdoor sites, washdown areas and marine installations.

Can it switch a motor directly?

Yes, up to 1HP at 250V AC and half a horsepower at 125V AC. Larger motors should run through a contactor with this switch driving the coil.

What does 1NO 1NC mean?

One normally open and one normally closed contact. When the rod is deflected, the NO closes and the NC opens, giving two signals from one device.
